PRODUCT DESCRIPTION

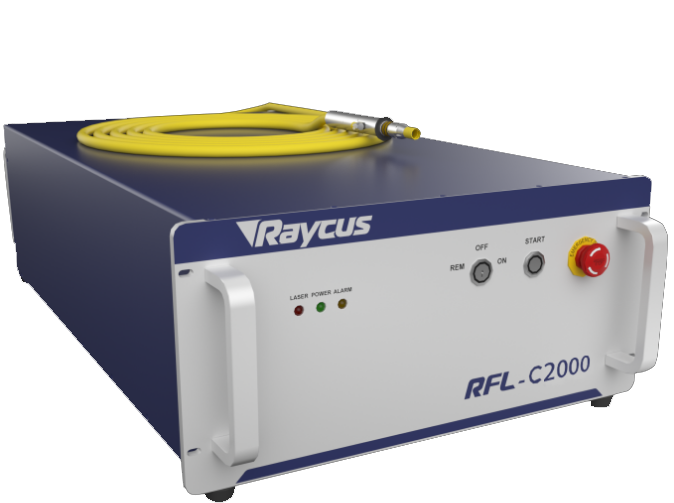

Max/Raycus/IPG Fiber laser source

High Electro-optic Conversion Efficiency
High Reliability, long service life.
Maintenance-free operation

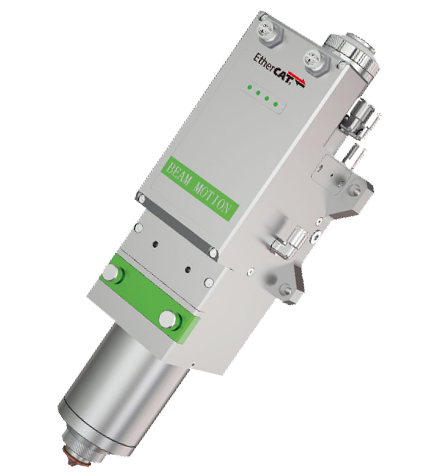

Raytool Laser Cutting Head

High efficient and cost-effective
Reproducibility, high accuracy.
High cutting speed and optimal edge quality

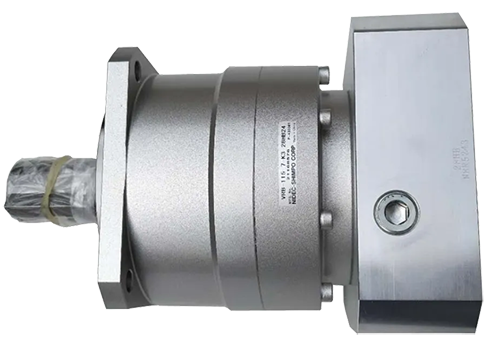

Japan Shimpo Reducer

Dual cooling function
Real-time alarm
Machine protection

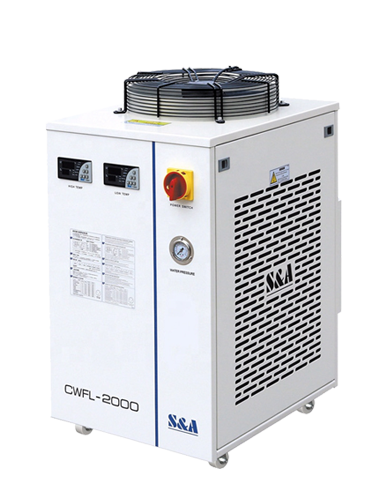

TEYU Water chiller

Dual cooling function
Real-time alarm
Machine protection

PRODUCT DESCRIPTION

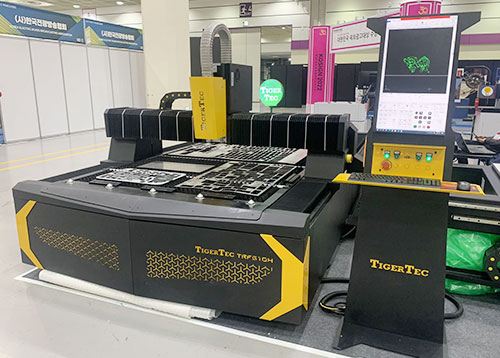

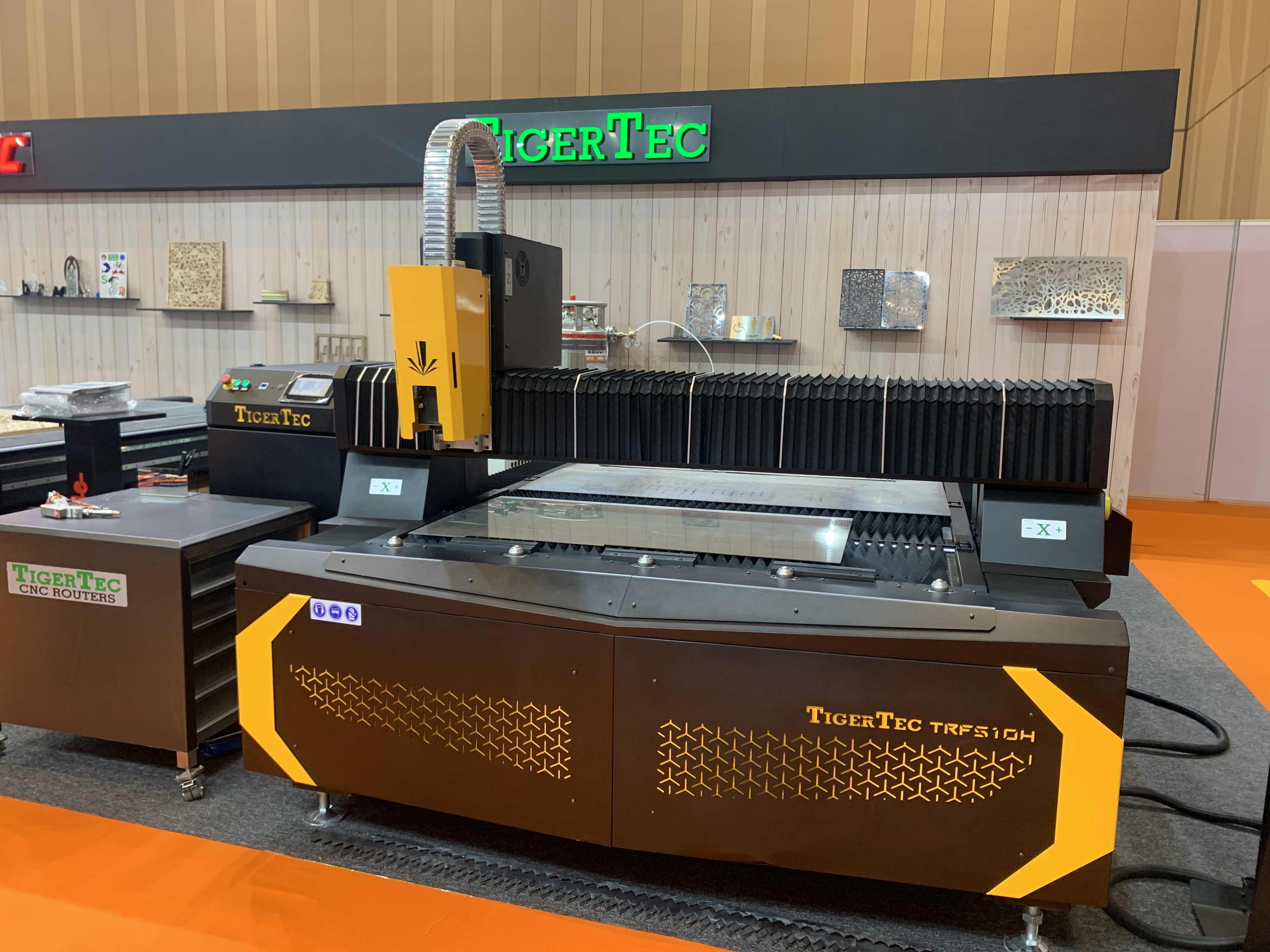

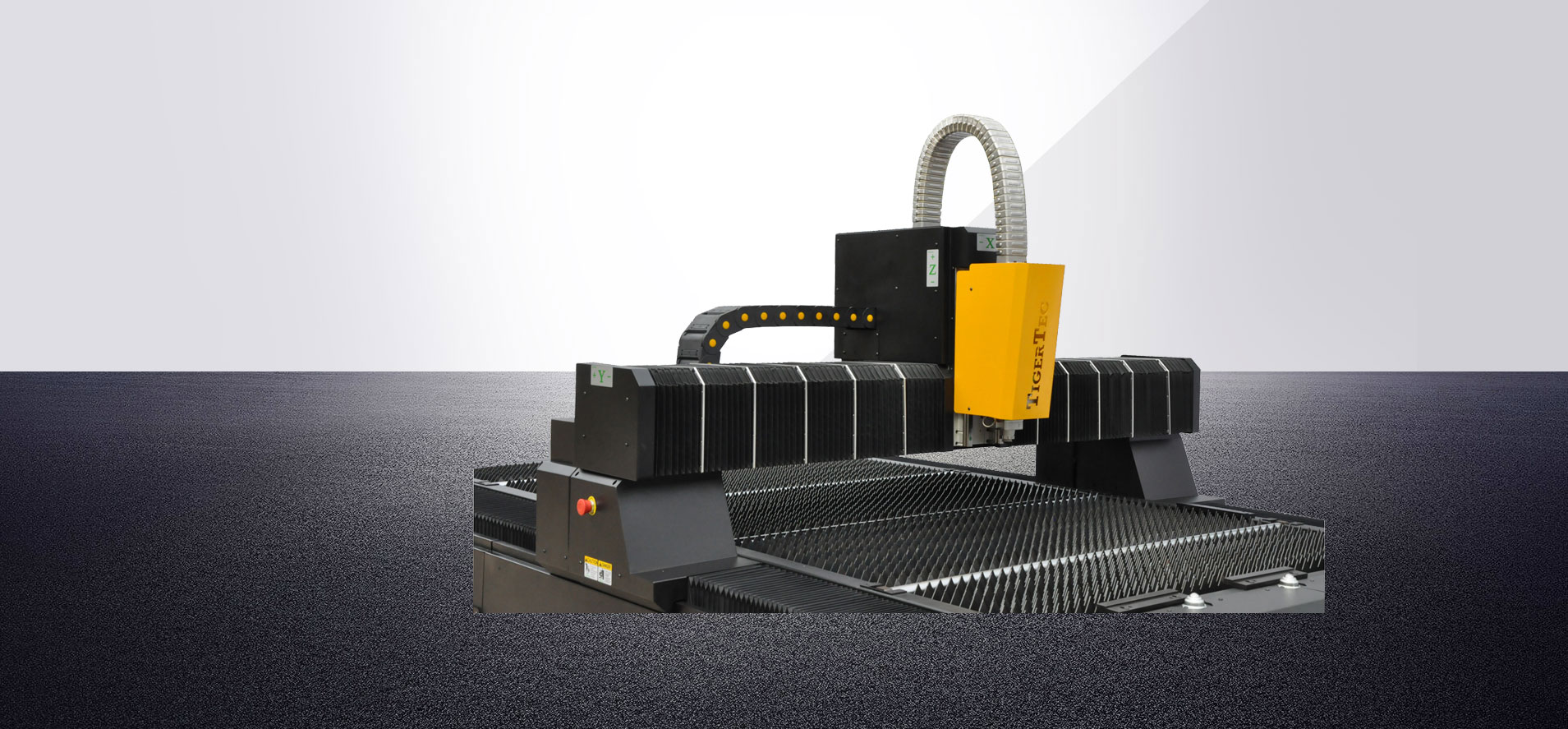

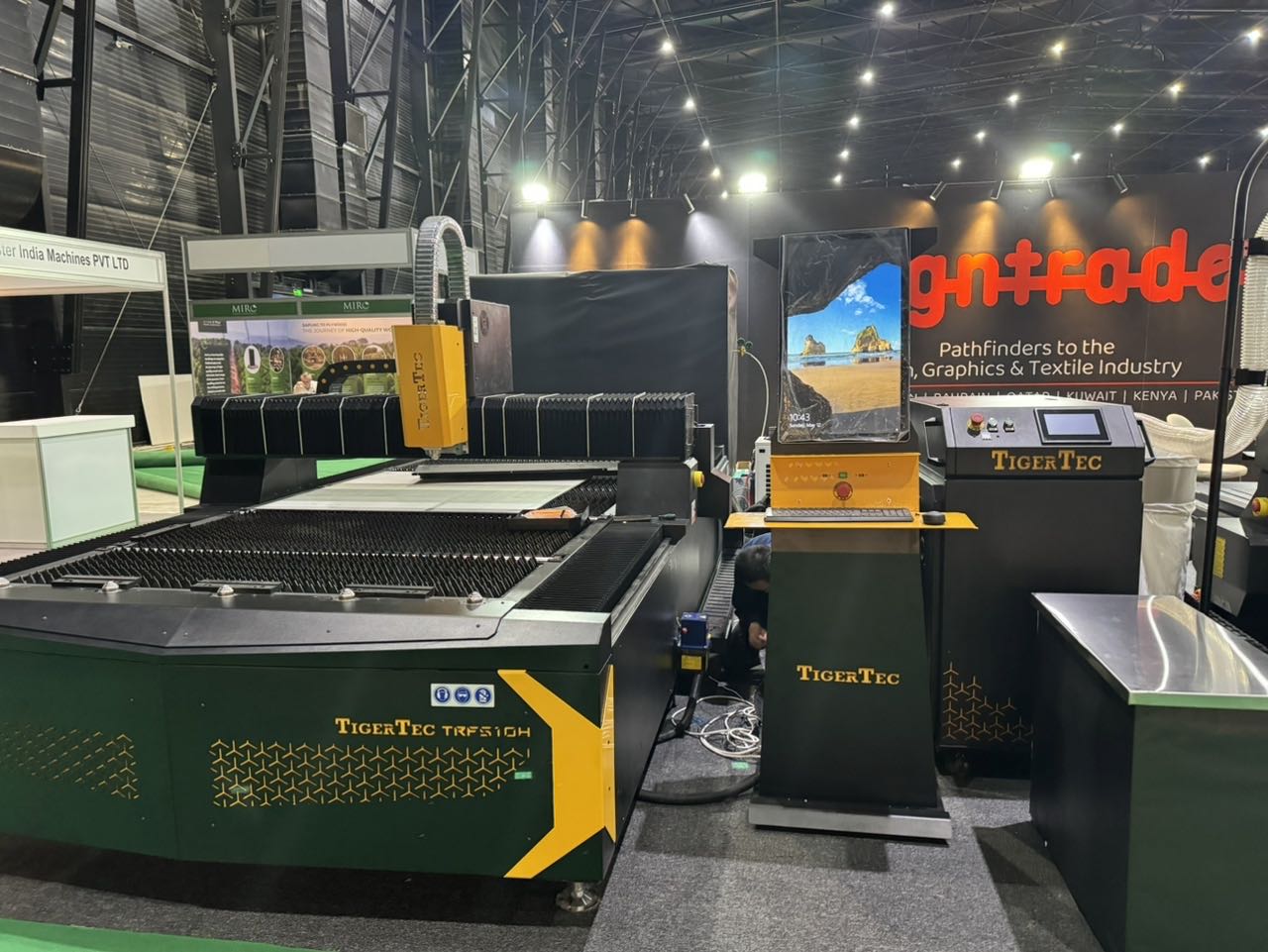

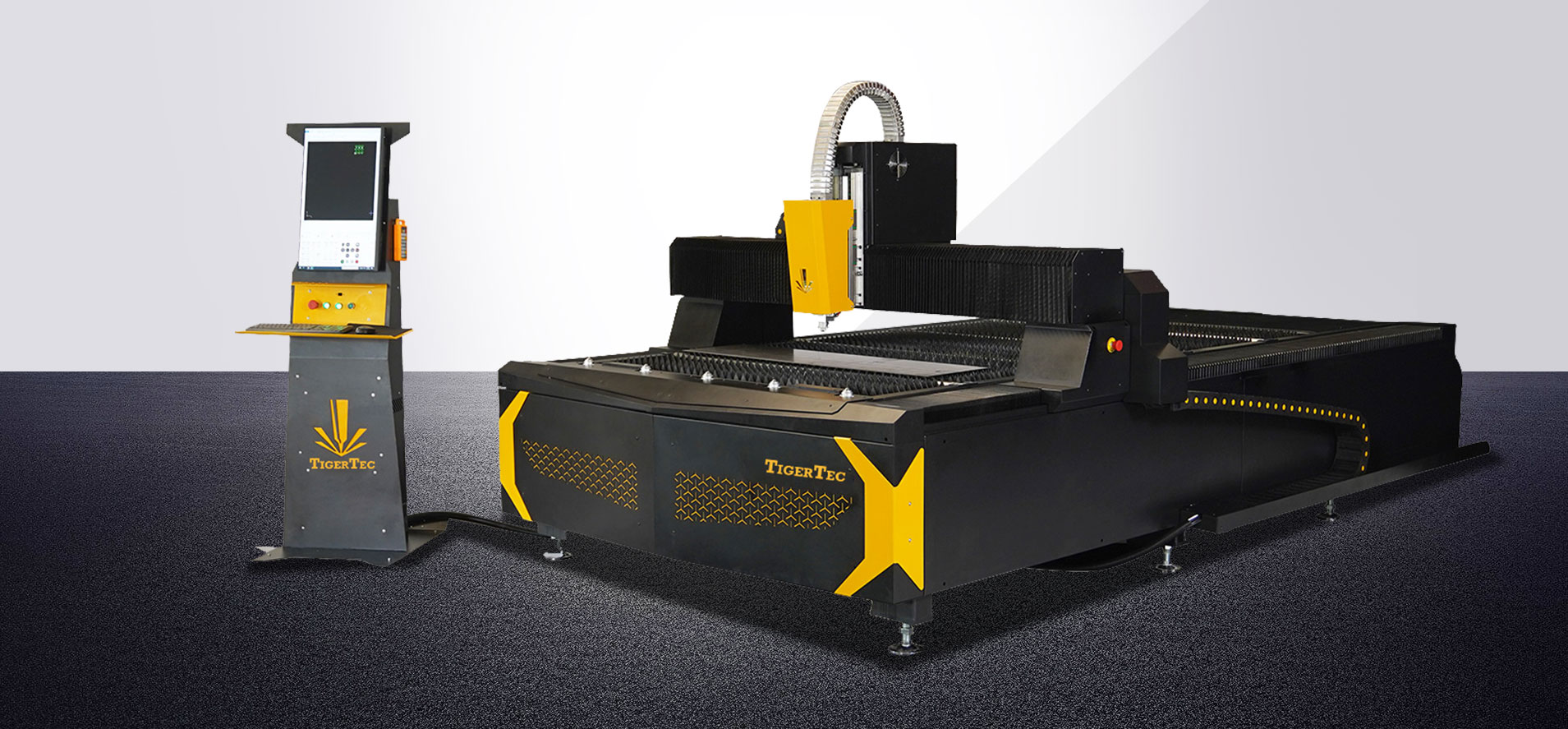

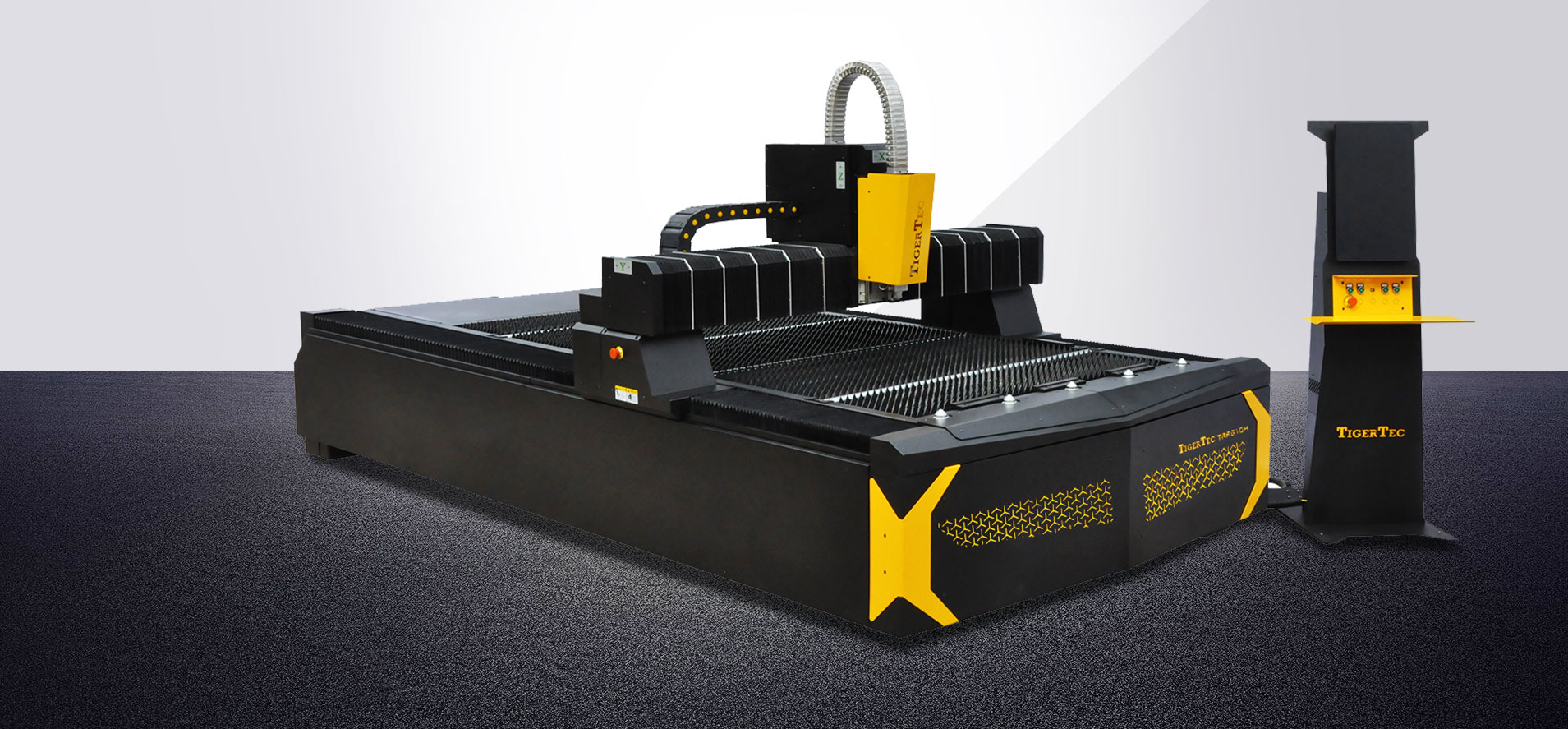

TigerTec fiber laser give you the ideal equipment for laser processing which makes it easier for you to earn good reputation in the world.

TigerTec fiber laser series designed to large-scale series production with extensive automation displays its superiority across the board. This applies in particular to cost-effective laser processing of small to medium-sized components with good quality.

TigerTec fiber laser series is robust and reliable which will create smooth cutting edges and no need require post-processing. The parts are free of burrs even with thick stainless steel. A simple operating concept can be easily operated by new operators and is well equipped with intelligent features to deliver worry-free, walk- away performance and high productivity.

Outstanding Features:

• Heavy-duty welded steel structure

• High precision and reliability over time

• Maximum productivity, minimum footprint.

• Machine customization depending on different

production requirements

Applications:

Capable of cutting carbon steel, brass, aluminum and stainless steel without fear of back reflections damaging the machine. By using these fiber laser machines, you will-reduce your maintenance requirements and cut your operating costs considerably.

Kitchen cabinets,Door processing, Lighting hardware, Chassis cabinets, Advertising signs, Elevator manufacturing, Sheet metal processing, Home appliances


TECHNICAL PARAMETERS

Laser Power

1.5Kw, 1.0Kw, 1.5Kw, 2.0Kw, 2.5Kw, 3.0Kw, 6.0Kw, 8.0Kw, 10Kw, 12Kw, 20Kw

Laser Wave Length

1080nm

Welding Speed

0-120mm/s

Welding Gap

≤1/5 of the thickness of sheet metal

Welding range

0.5~4mm carbon steel,0.5~4mm stainless steel,0.5~2mm aluminium alloy,0.5~2mm brass

Fiber Length

Standard 10m

Cooling Mode

Water cooling

Voltage

380V/50HZ, 220V optional

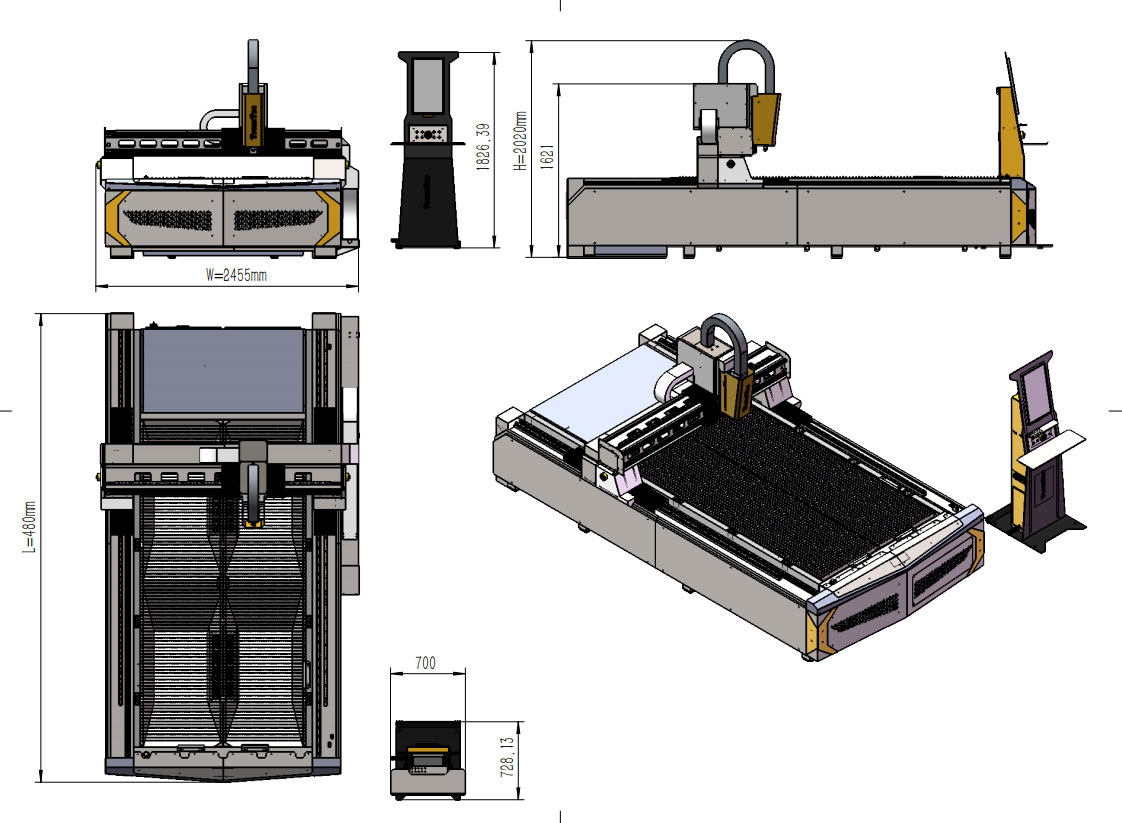

Machine Layout
