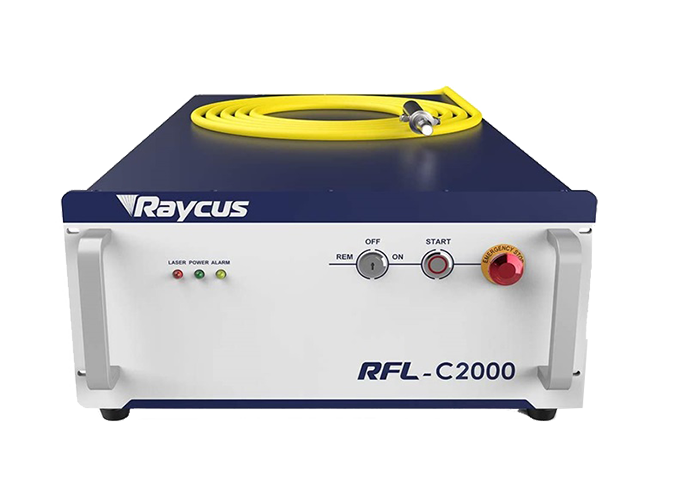

Raycus laser source

HighElectro-optical Conversion Efficiency
Altitude Stress-resisting Capacity
Sheet Cutting Efficiency
Customized Output Fiber Length
Optional Air Cooling or Water Cooling
Maintenance-free Operation
Wide Modulation Frequency Range

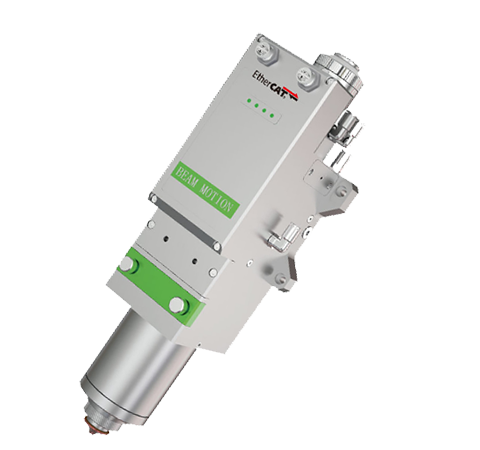

Raytool Laser Cutting Head

Modular design with easy maintenance.
Dual water cooling circuits.
Auto focus to reduce human intervention and improve piercing and cutting efficiency.
3 Cover glasses (top, middle and bottom) to protect collimation & focus lens.
IP65 class dustproof, patented cover glass cover plate. All-around dust prevention.

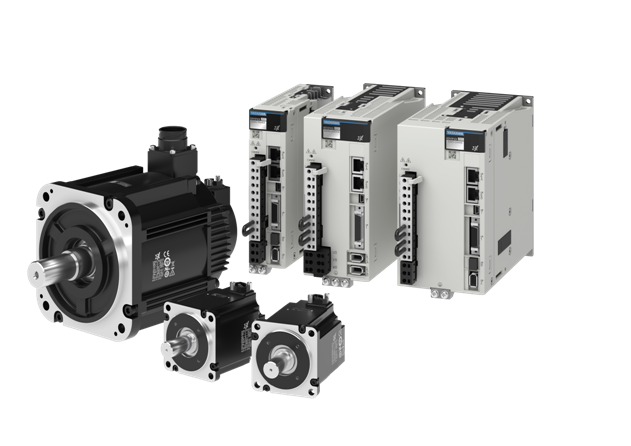

Japan YASKAWA servo motor and driver

The YASKAWA servo driving is designed to provide you with an excellent performance and high reliability. Small size, easy to carry and store, can be used for a long time. High quality performance: the servo motor is made of high-quality aluminum alloy material, which is durable and has good corrosion resistance. Convenient operation: the servo motor is equipped with a high-speed variable speed sensor, which can be adjusted according to different needs. Perfect for any occasion: this servo motor is suitable for all kinds of weather conditions, such as rainy, snowy, windy and so on.

TEYU Water chiller

Dual channel design for cooling the fiber laser and the laser head, no need of a two-chiller solution; ±0.5℃ precise temperature control; Temperature control range: 5-35 ℃;  Constant temperature and intelligent temperature control modes; Built-in alarm functions to avoid water flow problem or temperature problem; CE, RoHS, ISO and REACH compliant; User-friendly temperature controllers for easy operation Optional heater and water filter.

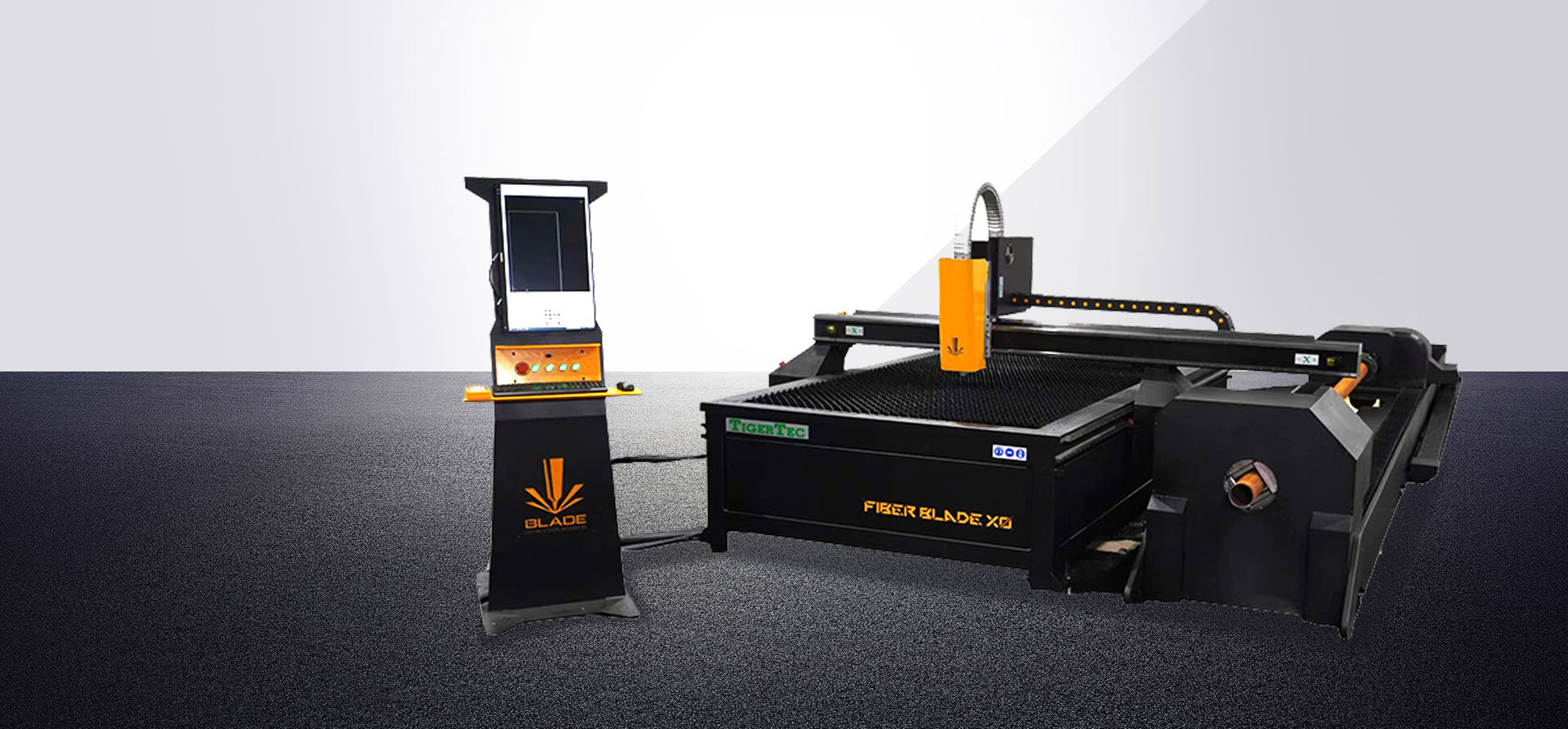

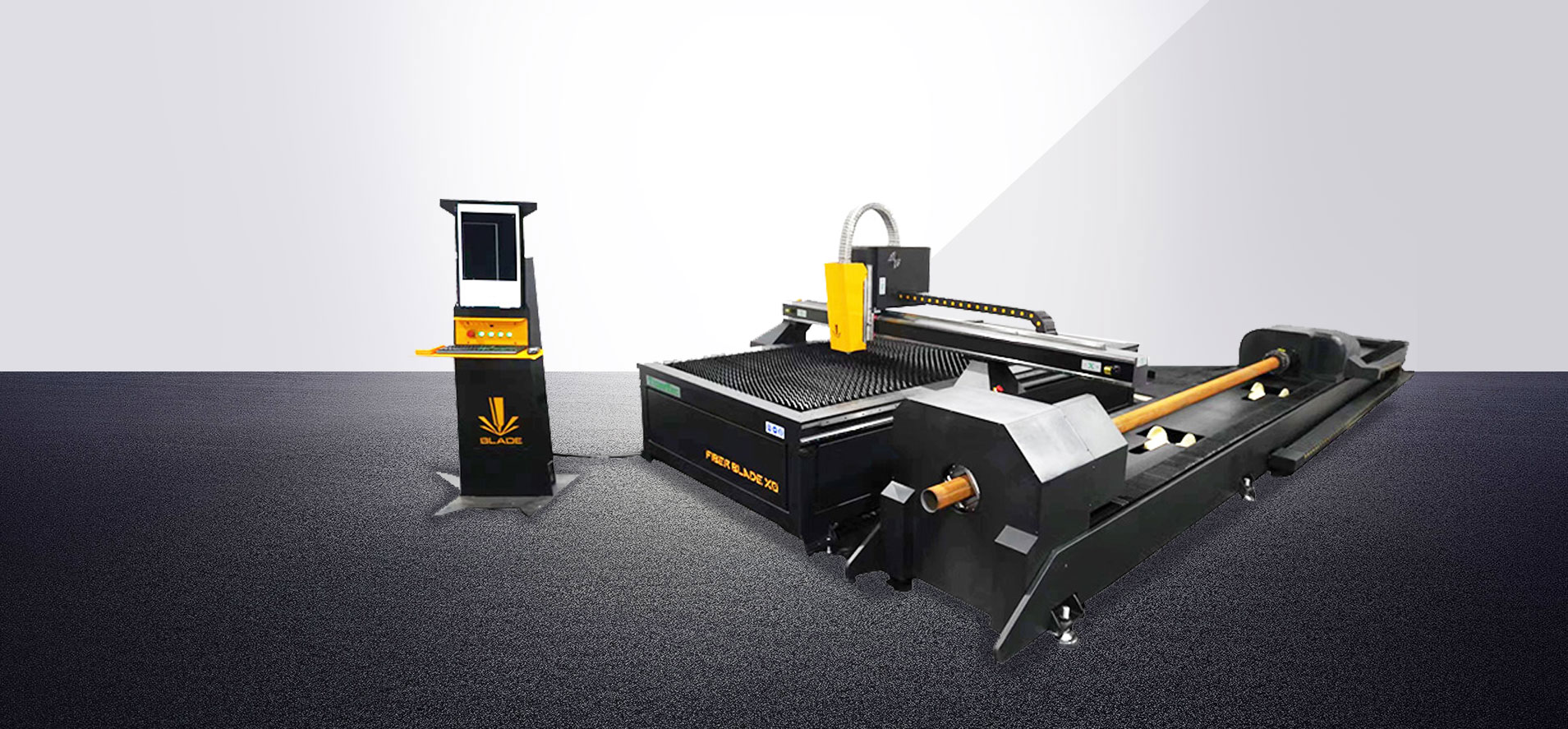

 Fiber laser machine with tube cutting machine, double-use function can save you entire process steps, space and money. It can not only process metal sheets but also various metal tubes which greatly improves the economic pressure in conventional metal sheet and tube processing. TigerTec can offer you perfect solutions when it comes to laser tube cutting.

The machine adopts double pneumatic chucks, the clamping is stable and not loose, ensures cutting accuracy.

Dedicated support roller to avoid tube sagging and deformation, improve cutting accuracy and prolong service life.

Higher photoelectric conversion efficiency, more stable beam quality, stronger anti-high-reflection ability, to achieve better cutting results.

We cooperate with many brands, the main parts can be optional according to your budget, and the frame(working table/cover /Laser head)can be customized.


Since sheet and pipe integrated design, Industry adaptability has been greatly enhanced, including petroleum and pipe material, fitness equipment and other pipe material mainly mechanical processing, automotive manufacturing, machine cabinet and other board materials mainly mechanical processing, etc.

Specially used for cutting 0.5-5mm carbon steel sheets (pipes), 0.5-2.5mm stainless steel sheets, galvanized steel(pipes), electrolytic zinc-coated steel sheet(pipes), silicon steel(pipes) and other kinds of thin metal sheets and pipes. Range of pipe diameters: 20-220mm.



Working area



Steel gantry


Yaskawa servo motor with shimpo reducer from Janpan

X/Y Axis positioning accuracy


X/Y Axis repeated positioning accuracy


Fiber laser source


Laser head


Water chiller


idling speed


Cutting head


Tube size range

Φ15~Φ220mm(Circle Tube)
15*15~150*150mm( Square Tube)

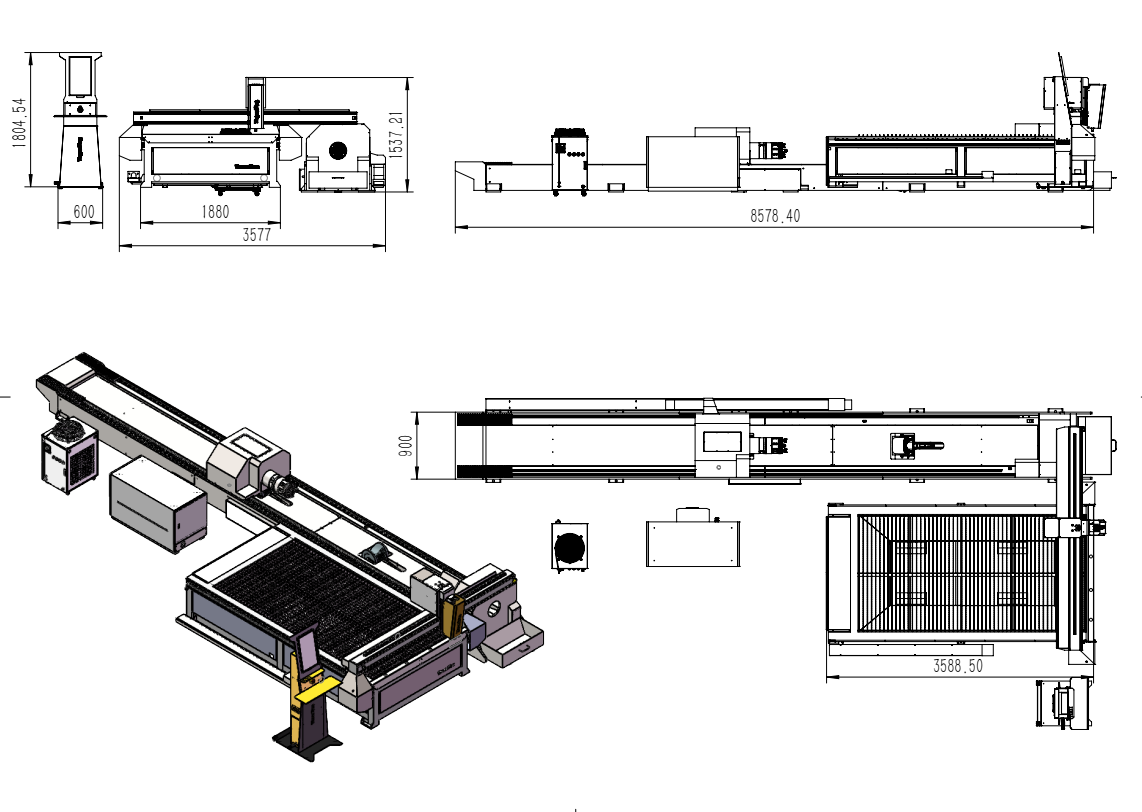

Machine Layout
