Table Top Series CNC Router For Hobby

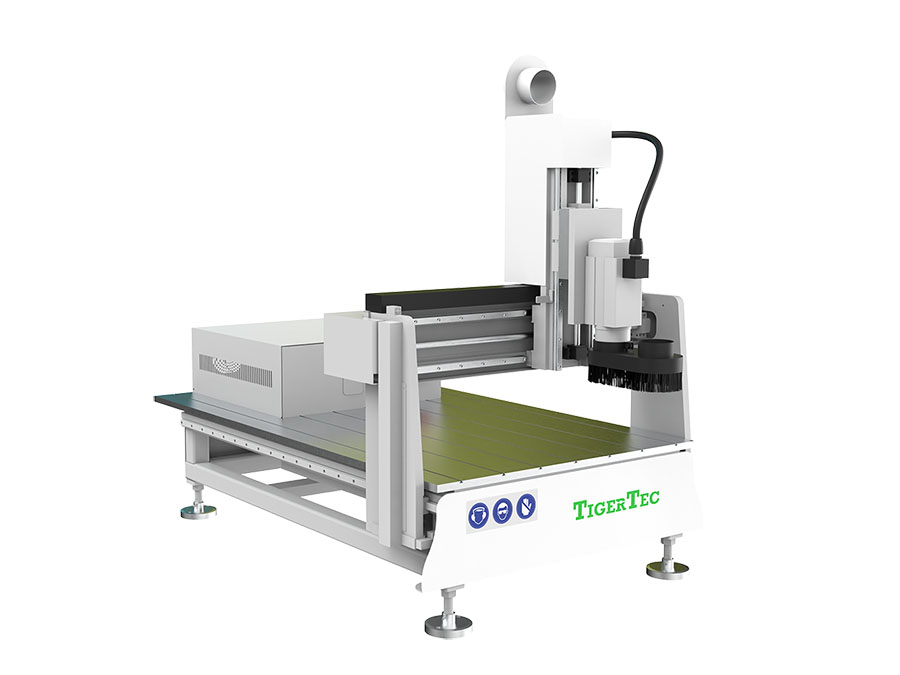

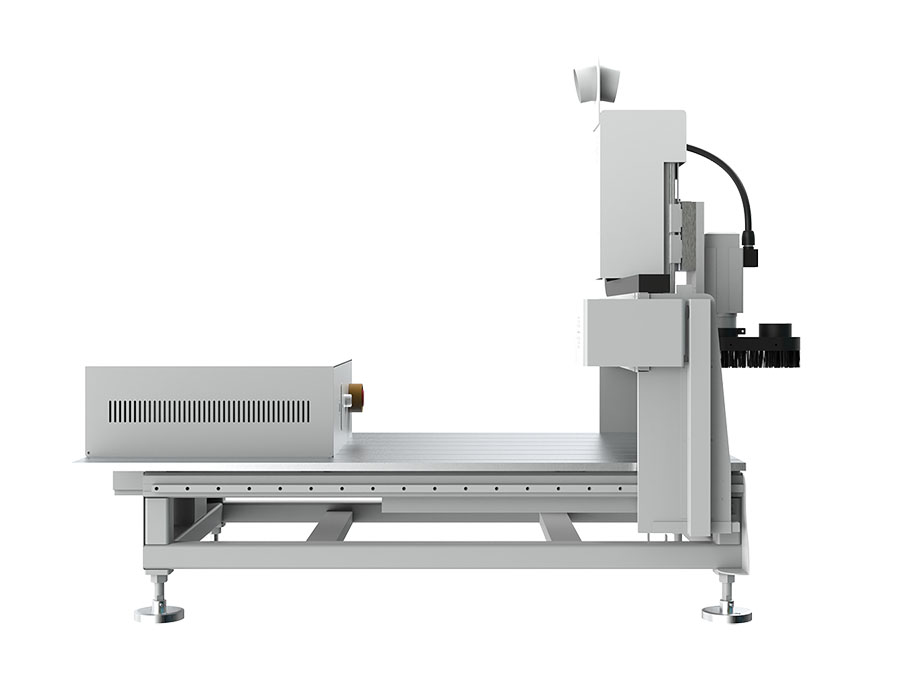

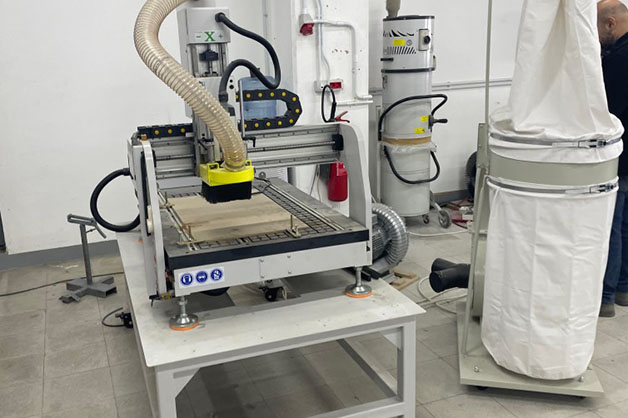

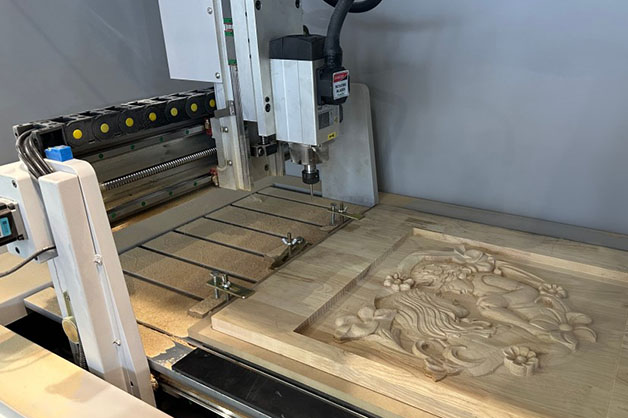

TigerTec is proud to introduce our new model TR203E tabletop CNC Router. A compact version of a full-scale CNC system designed for smaller-sized business or production environments or educational settings.

product details

product description

description1

description2

TECHNICAL PARAMETERS

Model No.	Process Area			Accuracy	Weight	Foot Print
	X	Y	Z			W	L	H

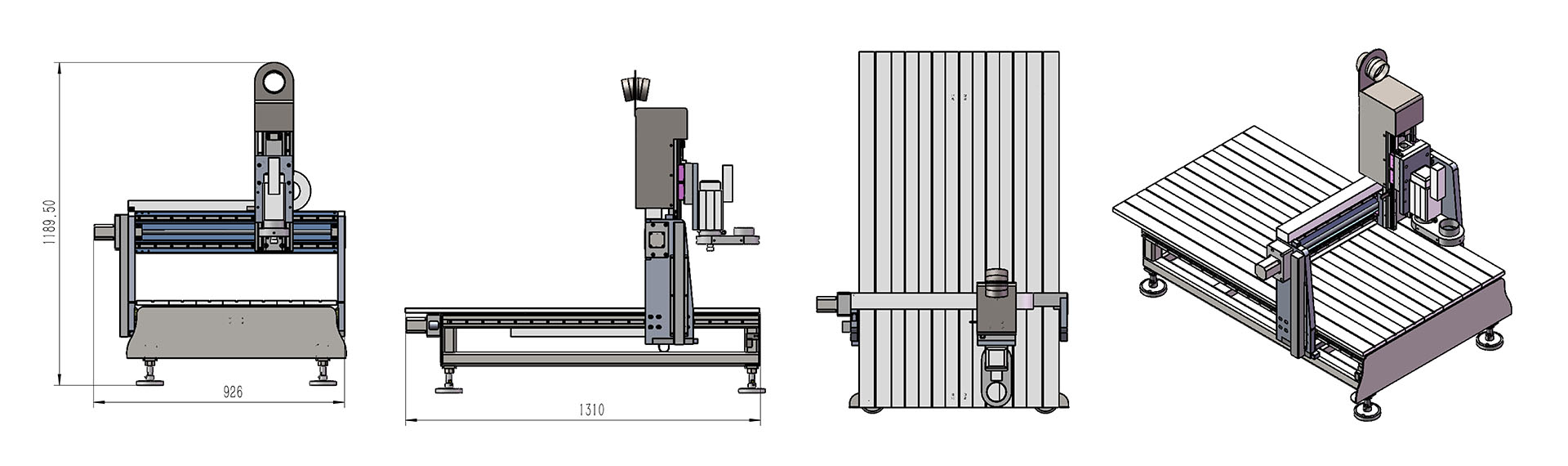

TR203E	600mm	900mm	150mm	± 0.05mm/m	250KGS	926mm	1310mm	1189.5mm
	23.6″	35.4″	5.9″			36.5”	51.6”	46.8″

PRODUCT Introduction

Product Description

Outstanding Features

Options

600*900mm(23.6"×35.4")process area,with 150mm(5.9") Z-axis stroke

With a 1.5KW(2HP)HQD air coolant spindle

Precision Ball screws and HIWIN linear rail and bearing on all 3 axes Micro stepper motors and Mach3 controls

T- slot table for easy parts fixturing

All the mechanical parts done by the CNC machine tools in Tigertec factory.

Steel base with casters

Servo driving system

Vacuum pump from China or Germany for your choice

1.5HP dust collector

Coolant system

4th axis rotary table with tail stock

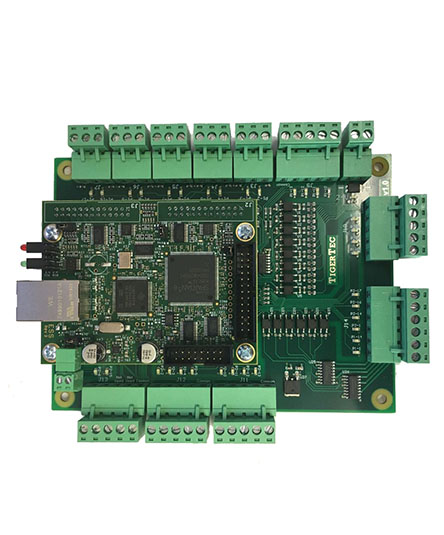

Mach3 controller

Mach3 control software is an open CNC system, easy to operate, easy to maintain, and a new type of CNC system with openness, stable performance.

Mach3 turns a typical computer into a CNC machine controller. It is very rich in features and provides a great value to those needing a CNC control package. Mach3 works on most Windows PC’s to control the motion of motors (stepper & servo) by processing G-Code. While comprising many advanced features, it is the most intuitive CNC control software available. Mach3 is customizable and has been used for many applications with numerous types of hardware.

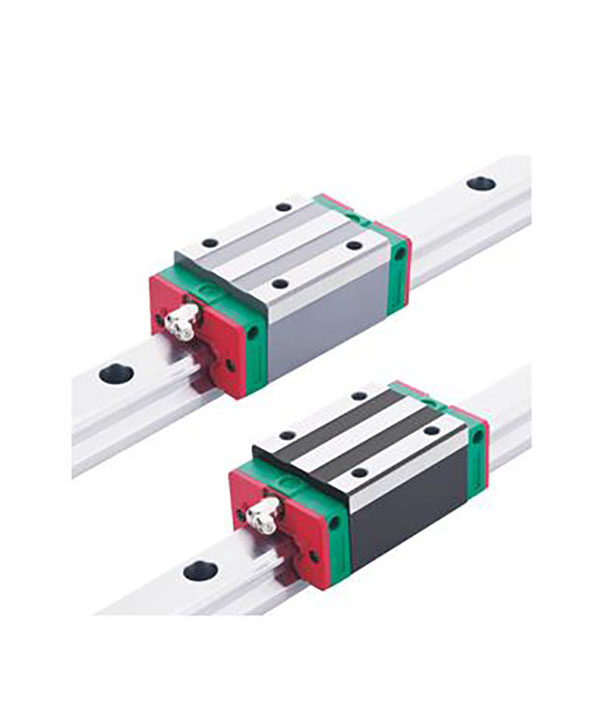

Square Block Linear Guides

HIWIN linear guideway improves the load and rigidity; it has the characteristics of load in four directions and the function of automatic centering, which can absorb the assembly error of the installation surface and meet the high precision requirements.

Hiwin HG Series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features 4-way equal load capacity in the radial, reverse radial and lateral directions and are self-aligning to absorb installation-error. HG series linear guideways achieve a long life with high speed, high accuracy, and smooth linear motion.

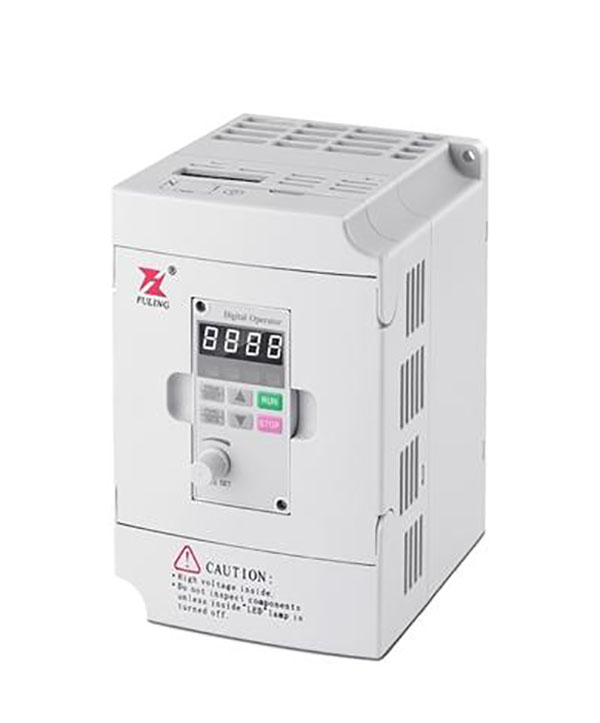

Frequency Inverter

It is mainly used for frequency conversion speed regulation and energy saving of three-phase asynchronous AC motors. It is used to control and adjust the speed of three-phase AC asynchronous motors. With its stable performance, rich combination functions, high-performance vector control technology, Torque output, good dynamic characteristics and super overload capacity occupy an important position in the inverter market.

Equipped with an LED screen, the vfd inverter with single phase output can monitor data changes in real-time, and heat dissipation aluminum fins to improve the heat dissipation performance of the frequency inverter. The variable frequency drive inverter has the characteristic of adjusting the motor speed, so it can effectively reduce the motor's energy consumption, thus saving electricity bills.

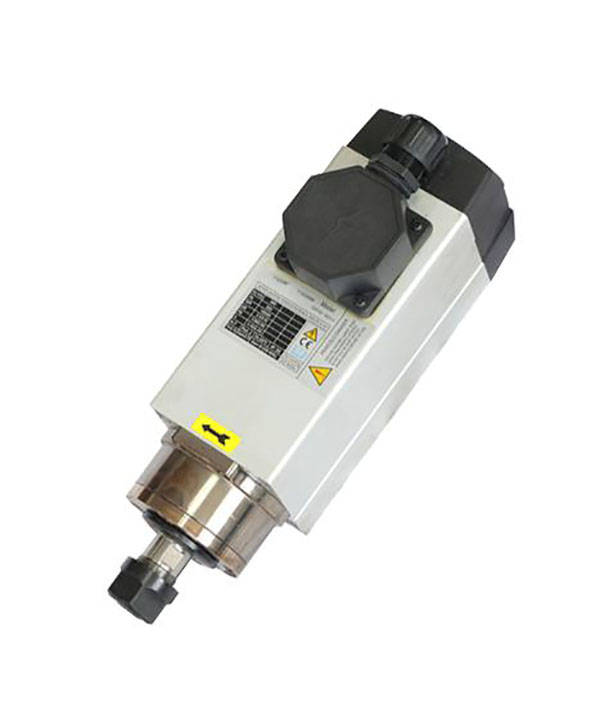

Air-cooled Spindle Motor

Good bearing quality and long working life Applications: Milling, engraving, drilling in various CNC routers Each spindle motor must undergo a polishing process to improve the concentricity of the spindle and increase the working life of the motor.

PT 2030 selects Italian HSD air-cooled spindle ES951 9.5KW. Choose from manual, quick-release, high-power and high-speed spindles for optimum processing of rigid sheet materials.

Quality power reliability precision, available with 9.5kw-18kw Automatic Toolchange Spindle.
