CNC Plasma Metal Sheet Cutting Machine
description1
description2
|
Model No. |
Process Area |
Accuracy |
Weight |
Foot Print （W*L*H） |
||||
|
X |
Y |
Z |
||||||
|
TR203P |
600mm |
900mm |
100mm |
± 0.1mm/m |
200KGS |
874mm |
1700mm |
1200mm |
|
23.6″ |
35.4″ |
3.9″ |
34.4″ |
66.9″ |
47.2″ |
|||
|
TR408P |
1240mm |
2460mm |
100mm |
± 0.1mm/m |
1000KGS |
2100mm |
3500mm |
1950mm |
|
51.2″ |
98.4″ |
3.9″ |
82.7″ |
137.8″ |
76.8″ |
|||
|
TR510P |
1500mm |
3000mm |
100mm |
± 0.1mm/m |
1800KGS |
2200mm |
4500mm |
1950mm |
|
59.0″ |
118.1″ |
3.9″ |
86.6″ |
177.2″ |
76.8″ |
|||
|
TR710P |
2000mm |
3000mm |
100mm |
± 0.1mm/m |
2000KGS |
2200mm |
4500mm |
1950mm |
|
78.7″ |
118.1″ |
3.9″ |
86.6″ |
177.2″ |
76.8″ |
|||
PRODUCT Introduction
Plasma power: Thermal Dynamics or Hypertherm
Input currency: 45A/65A/85A/105A/125A/200A
Driving system: Stepper driving system or servo driving system
Power frequency: 50Hz/60Hz
Controller

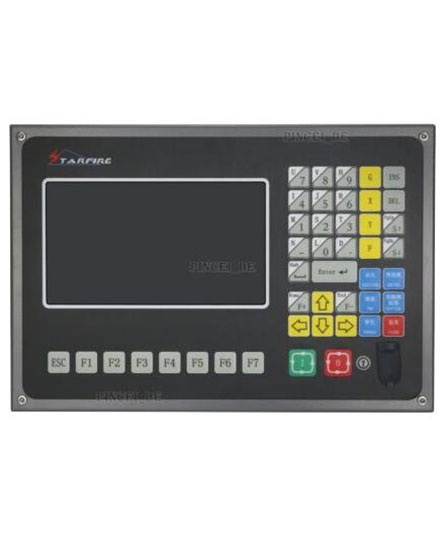

The system has faster processing speed, larger storage space and more convenient operation. The Starfire is a controller system with step jog for fine incremental control, start, stop and pause buttons, single button for safety clearance position, absolute and relative coordinates control, and more.

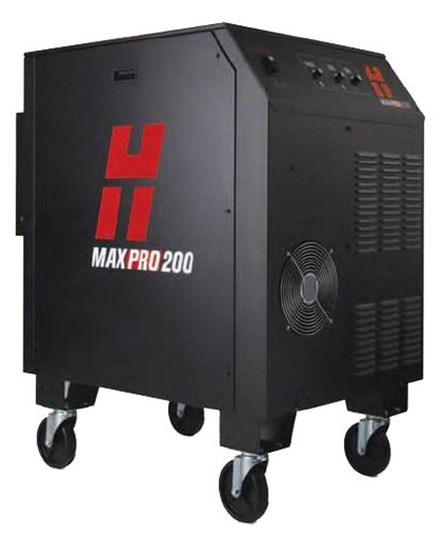

Hypertherm Powermax
The easy-to-use system operates with either air, oxygen, or nitrogen plasma gas, and combines fast cutting speeds and quick process changes to maximize productivity. Maximizes productivity through reductions in downtime, optimized cut quality performance and streamlined consumable inventory management. According to different materials can choose different power 45A, 64A, 85A, 105A, 120A, 200A.
Knife table

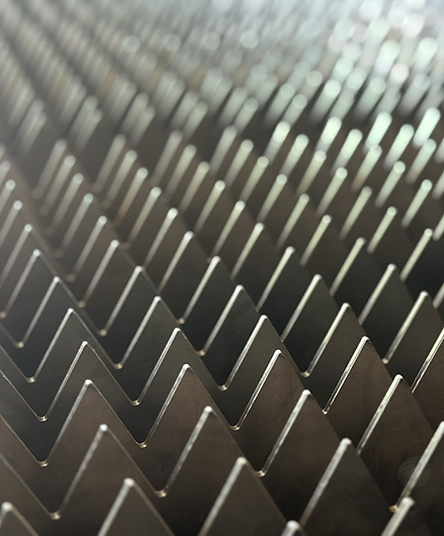

TigerTec steel slats provide the best part cut quality reducing slat slag of weld to part that can effect contact edge finish.
Electronics

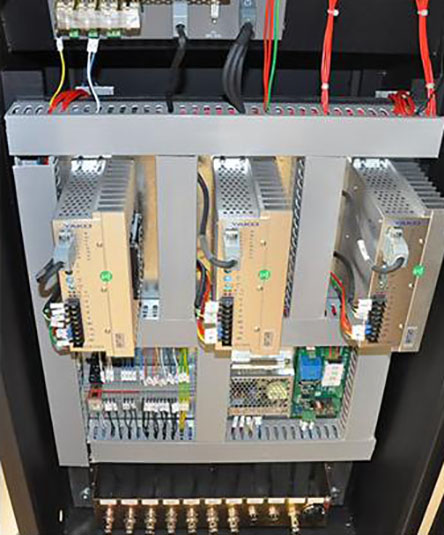

All the electrical components are housed and wired in a double door Nema 4 electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required the program.
01020304
01

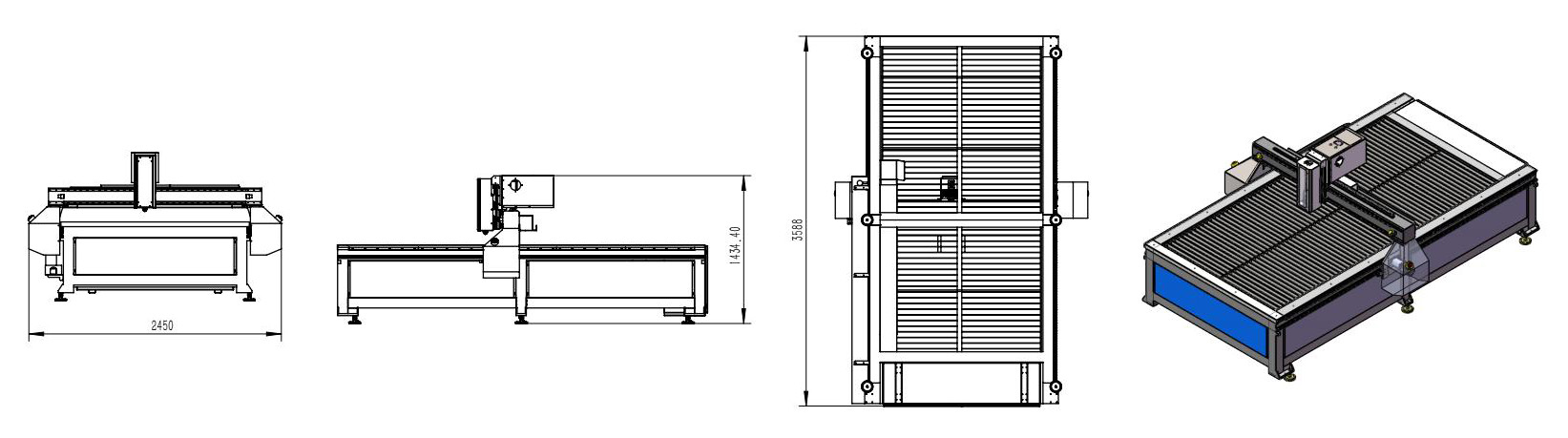

Machine Layout
