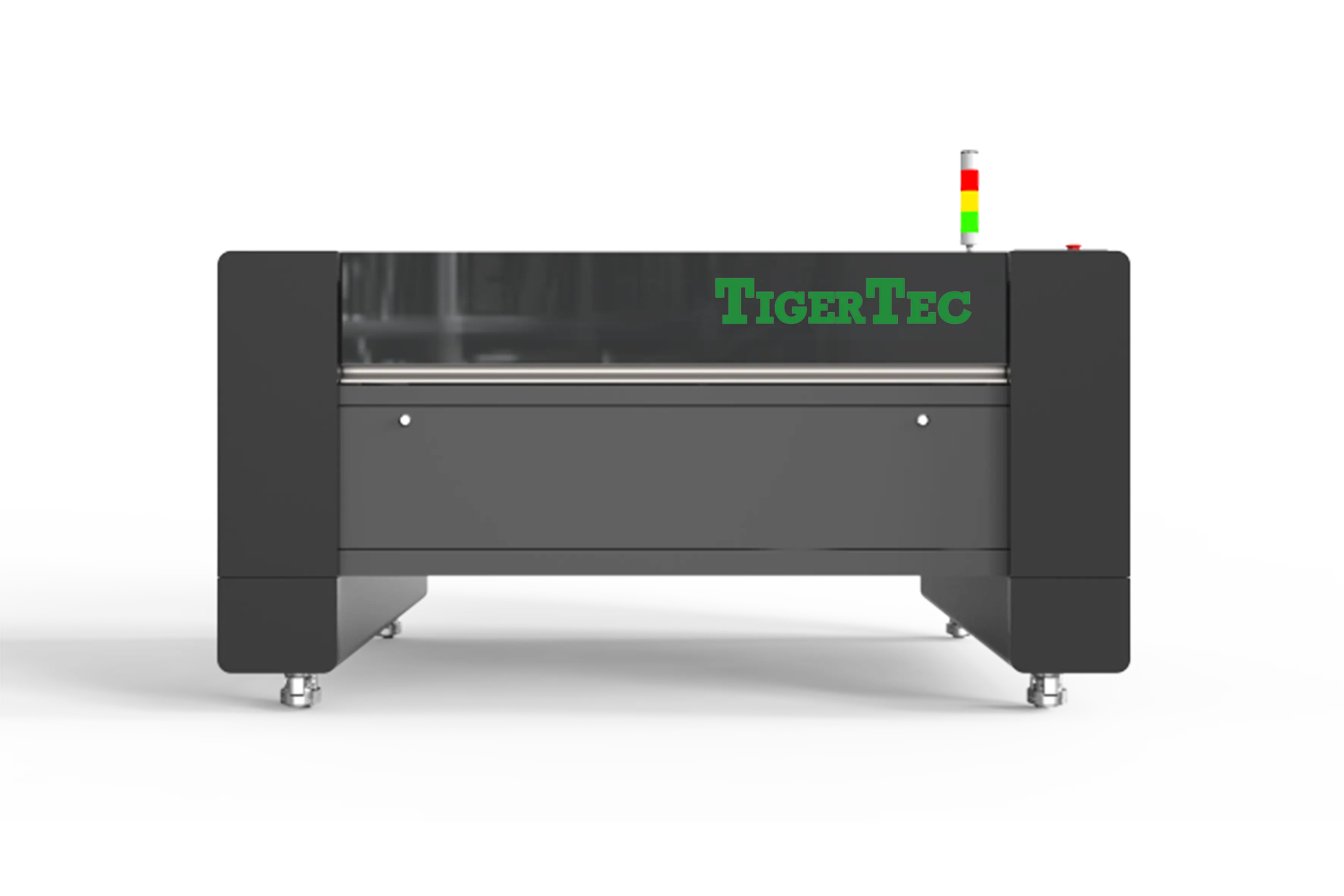

CO2 Laser Cutting and Engraver Machine
description1
description2
| Model | TL9060 /TL1390/TL1610 |
| Laser type | Sealed CO2 laser tube |
| Working size | 900x600mm/1300x900mm/1600x1000mm |
| Laser power | 100W/130W/150W |
| Transmission mode | Step motor + belt/servo-driven transmission |
| Engraving speed | 1-60,000mm/min |
| Position accuracy | ≤±0.05mm |
| Min character | Chinese character 2mm, English 1mm |
| Cooling mode | Water cooling and protection system |
| Operating voltage | AC110-220V±10%，50-60HZ |
| Working table | Knife blade or honeycomb |
| Working environment | Temperature:0—45℃ Humidity:5%—95%(No condensate water) |
PRODUCT Introduction
Adaptive Laser Control – Auto-adjusts power/speed for perfect results
3-in-1 Functionality – Cut, engrave, and mark in one system
Industrial-Grade Stability – 24/7 operation with consistent quality
Upgrade-Ready Design – Expand work area or power as needed
Ideal for signage, electronics, packaging, and crafts
Sealed CO2 Laser Tube
High Monochromaticity
Excellent Coherence
Extreme Brightness/ High Intensity
Controllable Beam Parameters
High Directionality
Laser Head
Versatile Material Compatibility
High Cutting and Engraving Precision
Efficiency in Energy Conversion
Clean and Non-Contaminating Processing
Fast Processing Speed
Cooling System
It features a built-in dual temperature control system with refrigeration function, which can cool the laser tube and protect it.
Knife Workbench
The aluminum oxide knife workbench is more compact, and its tool part is made of black anodized aluminum alloy, which can effectively reduce laser reflection. It is suitable for hard materials such as wood and acrylic.
01020304
Product Layout
