ATC Series with automatic labeling function

A Great Fit for Value Buyers Who Want High Performance

TigerTec with labeling is designed for efficient working in speed and reliability. Programmable CNC knife that allows you to cut a wide range of materials ( such as plastic, wood, foam, and composite materials ) and applications, from cutting, milling and drilling ensures the accuracy and efficient. The automatic tool changer system speeds up production exponentially as it moves with the gantry. We use servo motor system for the tool changer to increase the speed and accuracy.

product details

product description

description1

description2

TECHNICAL PARAMETERS

Model No.

Process Area

Accuracy

Weight

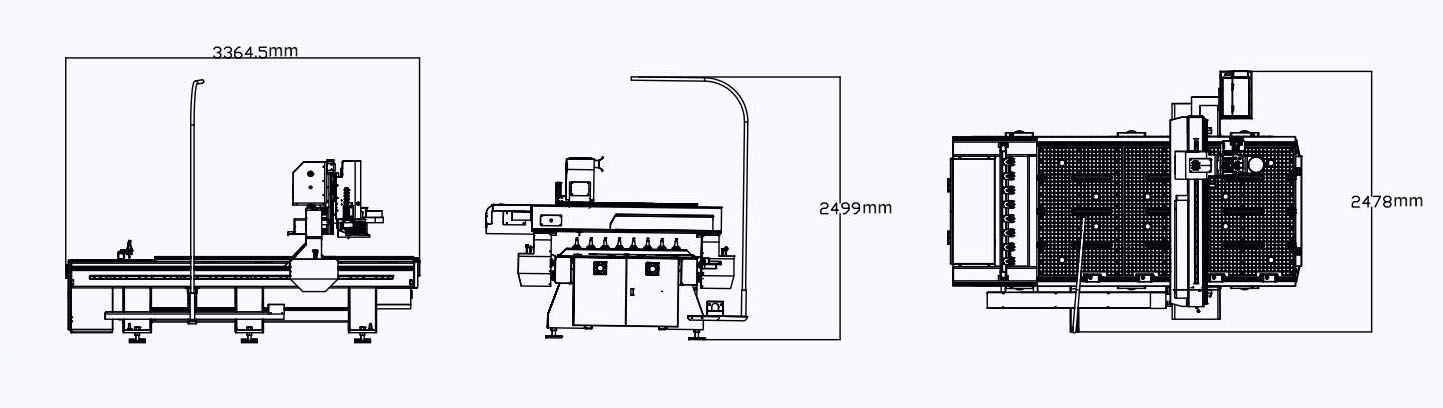

Foot Print （W*L*H）

TR408AD

ATC + Labeling

1220mm

48.03″

2440mm

96.06″

200mm

7.9″

± 0.05mm/m

1500KGS

2024mm

79.7″

3300mm

129.9″

1600mm

63″

TR510AD

ATC + Labeling

1550mm

61.02″

3050mm

120.08″

200mm

7.9″

± 0.05mm/m

1800KGS

2224mm

87.6″

3800mm

149.6″

1600mm

63″

TR710AD

ATC + Labeling

2050mm

80.71″

3050mm

120.08″

200mm

7.9″

± 0.05mm/m

2100KGS

2724mm

107.2″

3800mm

149.6″

1600mm

63″

TR712AD

ATC + Labeling

2050mm

80.71″

4050mm

159.45″

200mm

7.9″

± 0.05mm/m

2300KGS

2724mm

107.2″

4800mm

189″

1600mm

63″

PRODUCT Introduction

Product Description

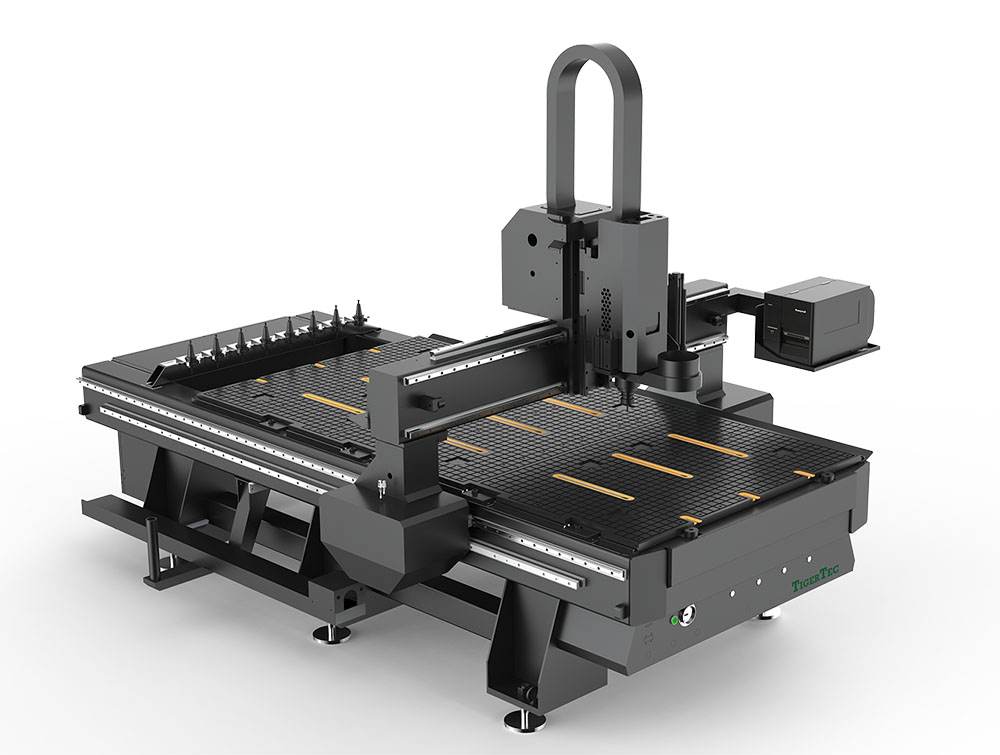

Outstanding Features

With 9.5kw (12HP ) HSD high frequency automatic tool changer spindle

TigerTec helical rack and pinion and linear guide ways for each of XYZ -movements

Work surface is constructed bakelite with T-slot tracks

Carousel tool holder with 12 holder positions for the ISO30 chucks driven by servo system

Automatic tool length calibration device < tool touch off >

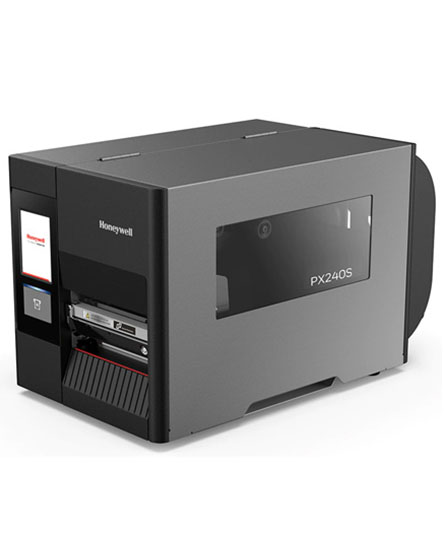

Integrated labeling - a module applies adhesive labels or prints directly onto the panel before or during processing, crucial for tracking parts in large production runs.

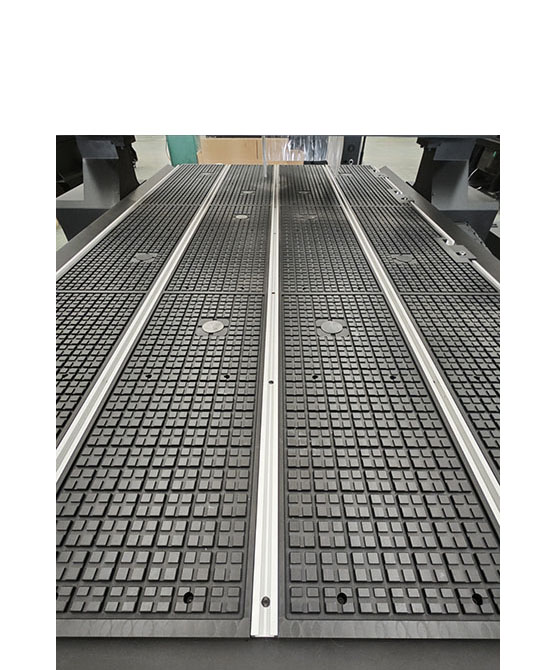

Multi-functional T-slot vacuum working table

The vacuum plenum table surface is multi-zoned which allows the operator to easily switch from full sheet processing to smaller part processing (which requires a smaller segmented area). Zones can be turned off easily via control valves on the front of the machine. Gasketing can also be routed to accommodate various material sizes and styles.

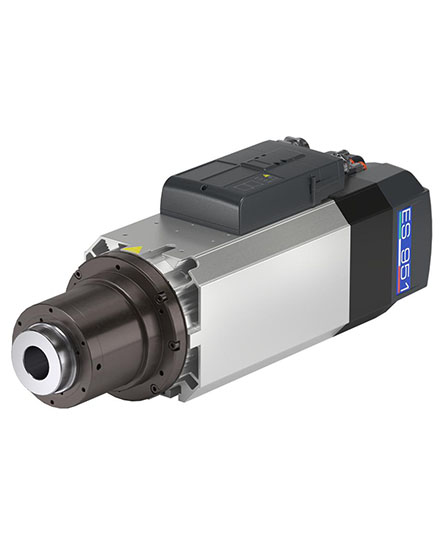

HSD ES951 ATC Spindle

This machine comes standard with a 12 HP HSD high frequency automatic tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders, is fully programmable with speeds from 6000 to 24000 RPM, and comes complete with a pneumatically retractable vacuum hood.

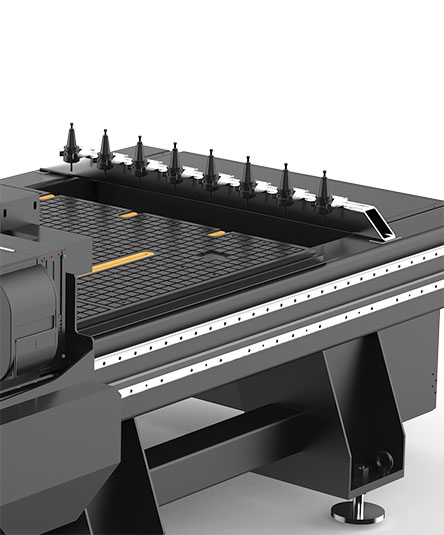

Linear tool magazine

This machine includes an 8-position tool rack in the rear of the machine. The position of this rack allows for easy loading and unloading of material from either side of the machine.

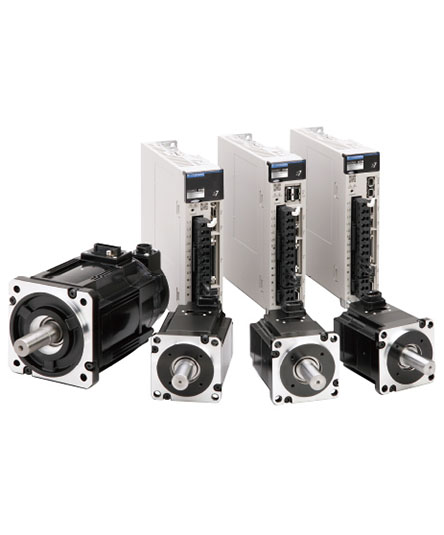

Servo driving system

The AD ATC Series CNC utilizes AC Servo motors powered by Yaskowa drives. These motors require no regular maintenance — therefore, reducing any maintenance downtime.
