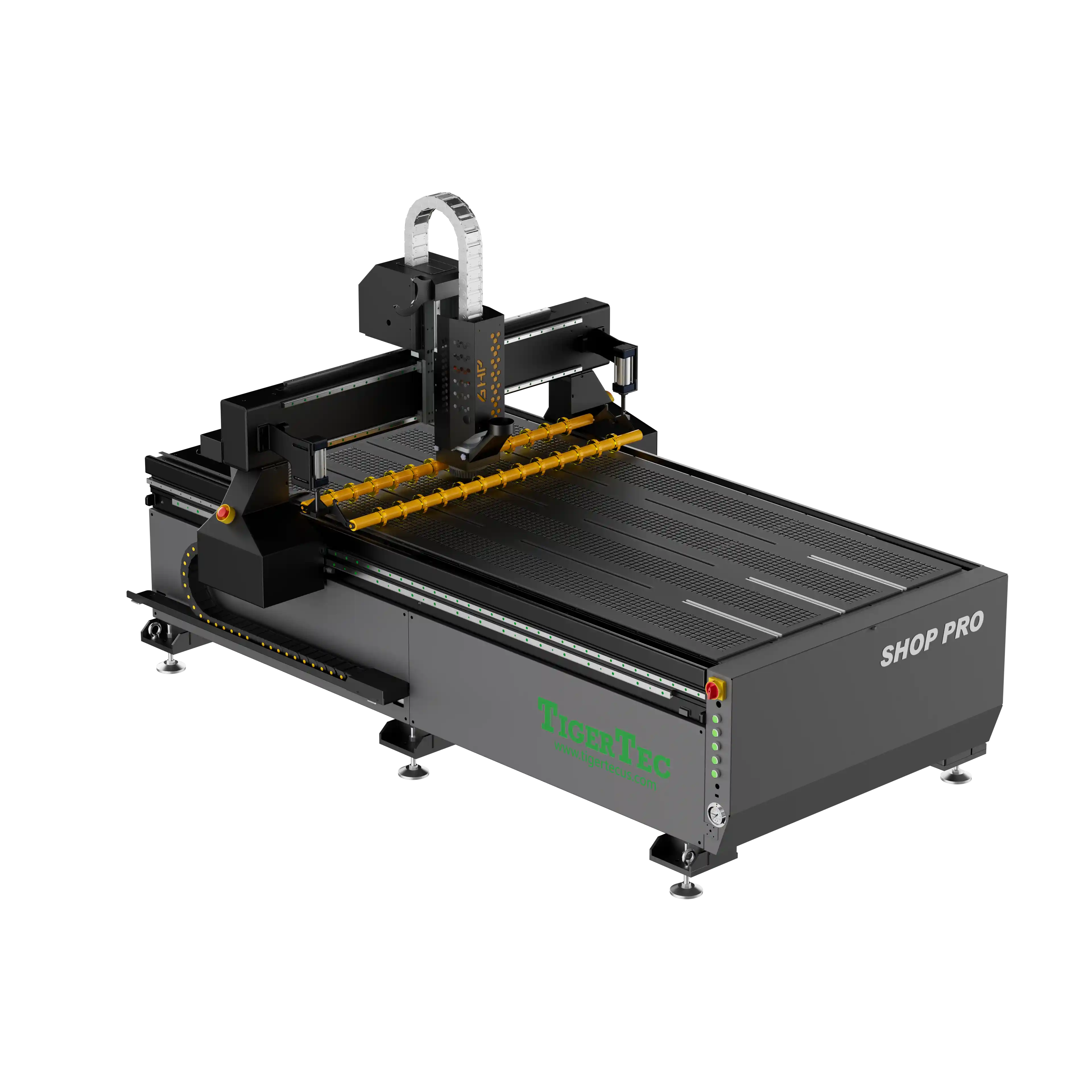

SHOP Series Affordable CNC Router

Do you need to make cuts, but want machines with high value, performance and cost-effectiveness? This model is designed for simplicity and easy-of-use. An optional vacuum working table is available to help you hold down your project.

Features an industrial-grade, HSD router Head, constructed in a one-piece welded steel frame, designed for simplicity and easy-of -use with high value, performance and cost effectiveness.

We designed them for easy configuration to meet high speed routing application requirements. Ideal for Sign Making, Prototyping, Model Marking, Engraving, Woodworking, Metal Engraving, Plastics, Foam, Educational Applications and General Fabrication.

product details

product description

description1

description2

TECHNICAL PARAMETERS

Model No.	Process Area			Accuracy	Weight	Foot Print
Model No.	X	Y	Z	Accuracy	Weight	W	L	H
TR408SHOP	1220mm	2440mm	200mm	± 0.05mm/m	1200KGS	2000mm	3000mm	1950mm
TR408SHOP	48.03″	96.06″	7.9″	± 0.05mm/m	1200KGS	78.7″	118.1″	77″
TR510SHOP	1550mm	3050mm	200mm	± 0.05mm/m	1500KGS	2250mm	3500mm	1950mm
TR510SHOP	61.02″	120.08″	7.9″	± 0.05mm/m	1500KGS	88.6″	137.8″	77″
TR710SHOP	2050mm	3050mm	200mm	± 0.05mm/m	1800KGS	2724mm	3800mm	1950mm
TR710SHOP	80.71″	120.08″	7.9″	± 0.05mm/m	1800KGS	107.2″	149.6″	77″

PRODUCT Introduction

Product Description

Outstanding Features

Options

Easy to Use Hand-held controller

With a 3.0KW HSD high frequency spindle

TigerTec rack pinion and Linear rails on all 3-axes

Maintenance free brushless stepper drive motors

T-slot working table with T-clamp for fixing the processing materials.

6.0KW, 7.0KW Spindle available upon request.

5'x 10', 7' x 12'stock sizes (Special sizes available upon request)

Optional PC based system available

T-slot vacuum working table

Japan THK linear rail

Germany WMH Helical rack pinion

Servo driving system

Mist cooling system

Lubricating system

Dust collector

Vacuum pumps from China or Germany for your choice

Quality mechanical parts

Including precision rack and pinion drive, the heavy duty fully enclosed energy chain prevents ingress of chips and dust, reducing wear.

Quality control components

Siemens contactors with a robust and reliable, traceable, numbered wiring scheme give you long term peace of mind.

Reinforced gantry

The table can be zoned by easily moving gasket around to customize specific sections. Gasketing can also be routed to accommodate various material sizes and styles.
